Bone Processing Equipment
Bone Crusher Grinder Machine
Bone crusher grinder machine crushes and grinds bones and meat at 200–400 kg/h, producing a uniform 2–3 mm product for pet food, feed, and rendering.
Meat Drying Equipment
Taizy meat dryer machine removes 60–960 kg meat per batch with precise temp control, uniform hot-air drying, ideal for beef jerky, fish, pork, sausages.
Taizy meat dryer machine is a machine used to remove the moisture of the meat. The machine circulates the hot air continuously to take away the excess moisture of the meat. This meat drying equipment is mainly used for the processing of meat. The dry effect is very suitable for the processing of beef jerky. It can also dry fish, beef, pork, sausages, etc.

This industrial food-grade drying machine has a single-batch capacity of 60–960 kg. It ensures uniform drying, precise temperature control, and stable continuous operation. It is widely used in meat processing plants, food factories, central kitchens, and meat snack production lines.

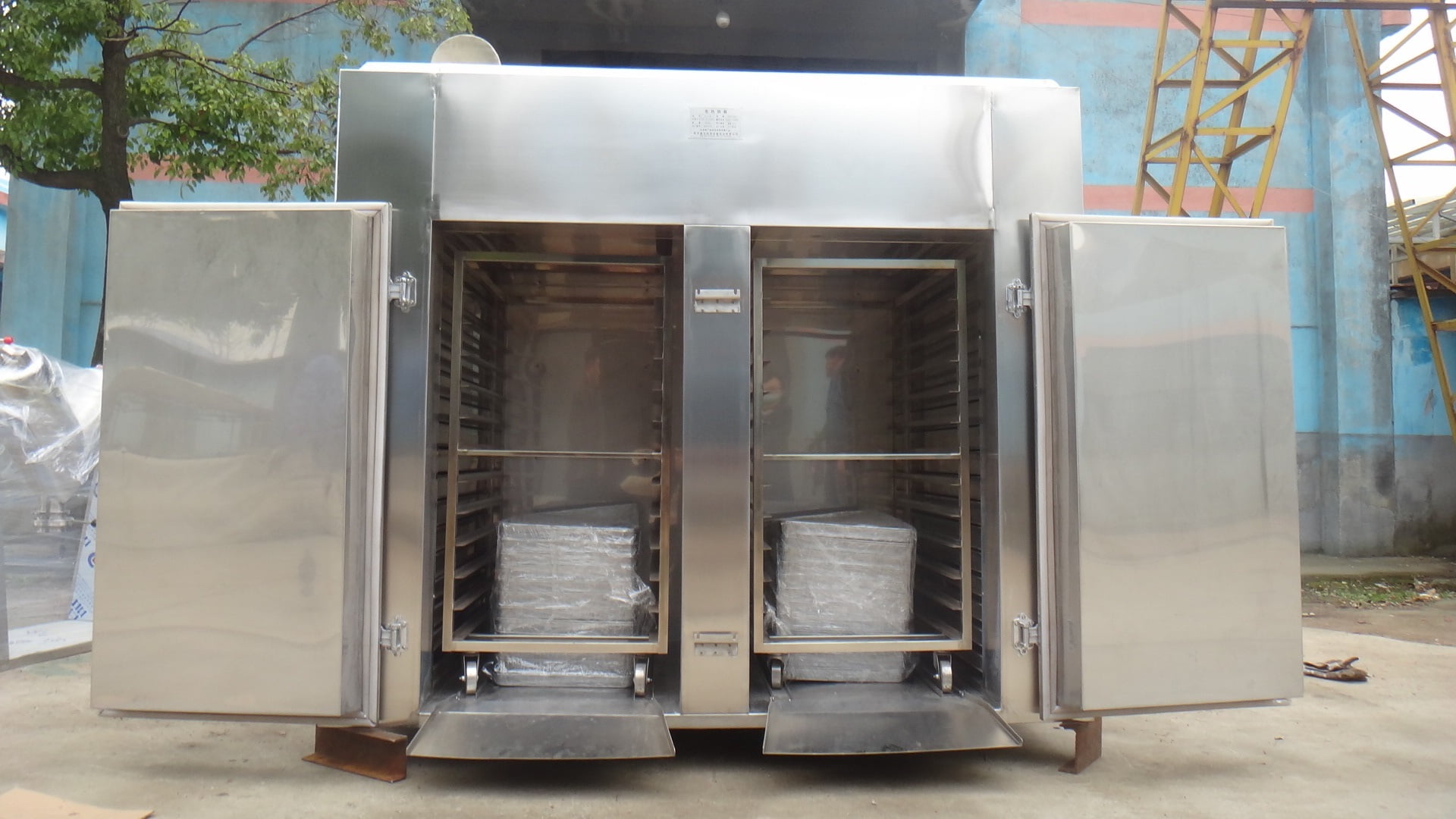

This type of drying equipment is available in different sizes, categorized as single-door, double-door, triple-door, and four-door models. Below, I will provide a detailed introduction.
This equipment is suitable for a wide range of meats and processed meat products, categorized by meat type and usage:
Red Meat
White Meat
Processed Meat Products
Fruit and Vegetable Products



Uniform Drying System
Precise Temperature Control
High-Capacity Continuous Production
Energy-Efficient Design
Multiple Models Available

Below, I will categorize the meat dryer machine by size and different specifications. Here are their technical parameters:

| Model | Product Size (cm) | Power | Fans | Capacity (kg) | Export Weight (kg) |
|---|---|---|---|---|---|
| XD-145 (Mech/Smart) | M: 90×64×145 S: 93×64×145 | 3300W | Mechanical: 3 Fans Smart: 3 Large Fans | 20–40 | 120 |
| 145G (Mech/Smart) | M:100×69×145 S: 103×69×145 | 4000W | 3 Large Fans | 30–60 | 130 |
| XD-169 (Mech/Smart) | M: 90×64×169 S: 93×64×169 | 4500W | Mechanical: 4 Fans Smart: 4 Large Fans | 20–50 | 130 |
| 169G (Mech/Smart) | M:100×69×169 S: 103×69×169 | 5000W | 4 Large Fans | 30–75 | 140 |
| XD-196 (Mech/Smart) | M: 90×64×196 S: 93×64×196 | 5800W | 5 Large Fans | 40–70 | 150 |
| 196G (Mech/Smart) | M:100×69×196 S: 103×69×196 | 6600W | 5 Large Fans | 45–90 | 160 |

| Model | Product Size (cm) | Power | Fans | Capacity (kg) | Export Weight (kg) |
|---|---|---|---|---|---|
| XD-169P (Mech/Smart) | 134×94×169 | 6600W | 6 Large Fans | 60–100 | 280 |
| 169G Double | 142×105×169 | 6600W | 6 Large Fans | 90–180 | 300 |
| XD-189P (Mech/Smart) | 134×94×189 | 8800W | 8–10 Large Fans | 100–140 | 300 |
| 189G Double | 142×105×189 | 8800W | 8 Large Fans | 120–210 | 320 |
| XD-211P (Mech/Smart) | 134×94×211 | 10KW | 10 Large Fans | 140–180 | 320 |
| 211G Double | 142×105×211 | 11KW | 12 Large Fans | 150–210 | 340 |

| Model | Product Size (cm) | Power | Fans | Capacity (kg) | Export Weight (kg) |
|---|---|---|---|---|---|
| XD-189P3 | 201×94×189 | 12KW | 12 Large Fans | 160–200 | 480 |
| XD-189G3 | 210×104×189 | 12KW | 12 Large Fans | 160–200 | 510 |
| XD-211P3 | 201×94×211 | 16.5KW | 15 Large Fans | 180–220 | 610 |
| XD-211G3 | 221×104×211 | 18.5KW | 15 Large Fans | 540–640 | 650 |

| Model | Product Size (cm) | Power | Fans | Capacity (kg) | Export Weight (kg) |
|---|---|---|---|---|---|
| XD-189P4 | 268×94×189 | 16KW | 20 Large Fans | 640–800 | 600 |
| XD-189G4 | 284×104×189 | 18KW | 20 Large Fans | 720–880 | 630 |
| XD-211P4 | 268×94×211 | 21.5KW | 24 Large Fans | 860–1020 | 680 |
| XD-211G4 | 285×104×211 | 23.5KW | 24 Large Fans | 720–960 | 720 |
| Model | Body Material | Power | Fans | Capacity (kg) | Export Weight (kg) |
|---|---|---|---|---|---|
| XD-169S | 430 Magnetic SS | 6000W | 8 Small Fans | 100 | 200 |
| XD-189S | 430 Magnetic SS | 7000W | 10 Small Fans | 150 | 250 |
| XD-189S-3 | 430 Magnetic SS | 10500W | 15 Small Fans | 225 | 350 |
| XD-206S-3 | 430 Magnetic SS | 12500W | 18 Small Fans | 250 | 390 |
| XD-206S-4 | 430 Magnetic SS | 16500W | 24 Small Fans | 300 | 520 |
Notes

The meat drying equipment saves drying time, and the dehydration of the meat can be beneficial to the storage of the meat. In addition, beef jerky is also a snack that many people like. It is very nutritious. The meat dryer can Beef, fish, and other seafood are dried.

Themeat dryer machine operates on the principle of hot air circulation, using gas or electricity as the heat source. Heat is transferred through convective circulation driven by fans, while fresh air is continuously supplied to remove moisture. Its most notable feature is the internal hot air circulation system in this commercial beef jerky machine, which improves thermal efficiency and saves energy.
This meat dehydrator is equipped with an intelligent control system, allowing the temperature to be adjusted between 50°C and 100°C. The temperature range can be controlled according to the moisture content and firmness of the beef, ensuring compliance with actual beef processing requirements.

The drying time for meat is related to many factors, especially the moisture and thickness of the dried beef. In addition, the heating time is related to the adjusted temperature, so we need to adjust the temperature and time according to the actual production process. For example, in the process of making dried fruits, dried fruits need to be dehydrated at low temperatures, and the time is generally about 8 hours.

To complement the meat dryer machine, we also offer high-efficiency meat slicers designed for precise, uniform cutting. These slicers allow you to prepare beef, pork, or poultry into consistent slices, ensuring even drying and optimal texture in your jerky or dried meat products. Together, the meat slicer and dehydrator form a complete workflow for commercial or small-scale meat processing, improving productivity and product quality.
