Brine injector machine | saline injection machine
Parameters
| Model | SL-180 |
| Voltage(v) | 380V |
| Power(kw) | 7 |
| Capacity(kg/h) | 900-1000 |
| Injection Pressure(Mpa) | 0.45-0.9 |
| Injection Time | 15-50 |
| Injection Rate | 60-90% |
| Walking Speed | 40-70 |
| Dimension (mm) | 1950*1350 *1850 |
| Weight(kg) | 520 |
You can now ask our project managers for technical details

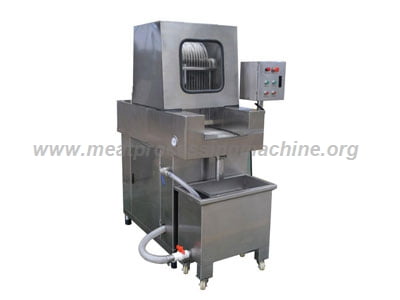

This brine injector machine is to inject saline, starch, soybean protein, and other auxiliary material into meat to marinate fully. Based on advanced technology and mechanical device, it can realize quick marinate, improve taste, keep meat nutrition, etc.
Automatic brine injector Working principle
1. The saline injection machine adopts tooth form stepping to feed meat, with accuracy stepping distance. The meat materials use three dismountable lattice bars to support, and the entry needle adopts a spring to control, so as to realize inject the meat with bone.
2. This machine can adjust stepping speed, stepping distance, meat press plate space, and injection pressure according to different meat materials, so as to get the ideal effect.
3. This machine adopts four-level filtration to prevent needle blocking, it’s ideal equipment to process meat.
Technical parameter of saline injection machine
| Model | SL-48 | SL-60 | SL-80 | SL-108 | SL-180 |
| Voltage(v) | 380 | 380 | 380 | 380 | 380 |
| Power(kW) | 4.1 | 4.1 | 5.1 | 6.2 | 7 |
| Capacity(kg/h) | 200-300 | 300-500 | 500-700 | 700-900 | 900-1000 |
| Injection Pressure(Mpa) | 0.45-0.9 | 0.45-0.9 | 0.45-0.9 | 0.45-0.9 | 0.45-0.9 |
| Injection Time | 15-40 | 15-40 | 15-50 | 15-50 | 15-50 |
| Injection Rate | 40-80% | 40-80% | 40-80% | 60-90% | 60-90% |
| Walking Speed | 40-70 | 40-70 | 40-70 | 40-70 | 40-70 |
| Dimension (mm) | 1350*750 *1650 | 1550*880 *1650 | 1550*1060 *1720 | 1850*1350 *1800 | 1950*1350 *1850 |
| Weight(kg) | 250 | 320 | 320 | 430 | 520 |
How to use the saline injection machine?
The saline injection machine can be matched with the tumbler machine to work, it can reduce the processing time of tumbling, and the tumbler machine can solve the nonuniform of saline after injection, it can supplement each other.
Saline injection machine features
1. Adopts SUS 304 Stainless steel materials with simple structure and convenient operation.
2. Reasonable design and structure, convenient clean, long service life.
3. This machine is equipped with an automatic protection device, if the entry needle touches any hard matter, it will uplift without damage.
4. Distribution box is stainless steel waterproof
