Chicken & Turkey
4000L hydraulic vacuum chicken marinating machine, 2000kg load, 3–12rpm variable speed, PLC control, auto feeding & tilting discharge for high-yield processing.

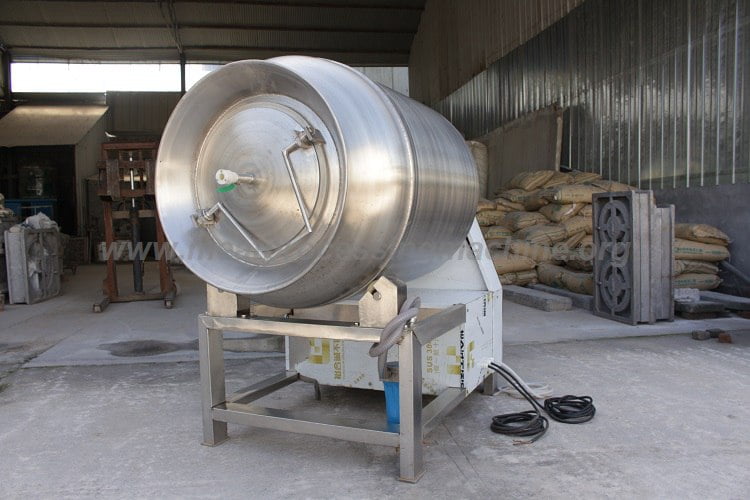

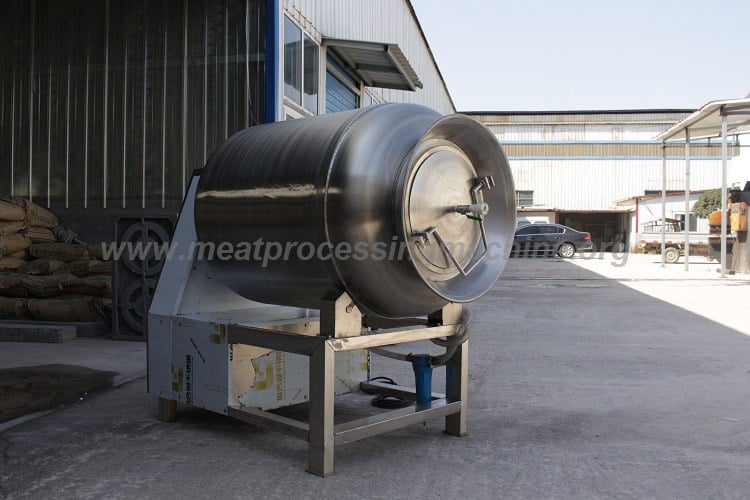

The chicken marinating machine, also called a hydraulic vacuum tumbler, is an industrial machine for fast marinating, tenderizing, and flavoring chicken under vacuum pressure.The total tank capacity is 4000L. The effective loading capacity is over 2000 kg. It is suitable for large meat processing plants, central kitchens, and food distribution centers.

Under vacuum pressure, the machine expands the meat structure. The drum rotates forward and reverse at 3–12 rpm with variable speed control. This allows the marinade to fully penetrate the meat fibers. It improves flavor uniformity and increases yield.


The machine is equipped with a PLC touchscreen control system, automatic feeding, automatic lid opening, and a hydraulic tilting discharge system. It ensures efficient, stable, and automated production. It is an important machine for improving chicken processing quality and efficiency.







High Capacity
Each batch can load over 2000 kg, suitable for large-scale production.
Food-Grade Material
Made of 304 stainless steel, corrosion-resistant, easy to clean, meets food hygiene standards.
Stable Quality
Produces tender meat with better water retention and higher yield.
High Automation
PLC control reduces labor costs.
Reliable Electrical Components
Equipped with Chint and Delixi electrical parts.
Durable and Dependable
High-quality hydraulic cylinders and electrical components ensure stable operation with low failure rate.

| Item | Specification |
|---|---|
| Model | TZ-4000 |
| Machine Dimensions | 3500 × 2150 × 2200 mm |
| Power | 9.8 kW |
| Voltage | 220V / 60Hz / 3-phase |
| Total Tank Capacity | 4000 L |
| Effective Loading | 2000 kg+ |
| Rotation Speed | 3–12 rpm (variable frequency) |
| Material | 304 stainless steel |
| Hydraulic Cylinder | 304 stainless steel |
| Control System | PLC touchscreen |
| Electrical Components | Chint, Delixi |
| Automatic Feeding | Supported |
| Automatic Lid Opening | Supported |

The chicken marinating machine uses a vacuum pump to create a negative pressure environment. This causes the chicken to expand and loosen. It reduces oxidation and inhibits microbial growth.
The drum rotates forward and reverse with variable speed control. Internal blades lift, drop, and massage the meat pieces. This action loosens the muscle fibers.
Under the combined effect of vacuum and mechanical tumbling, the marinade penetrates quickly and evenly into the meat. It achieves fast flavor absorption, tenderizing, better water retention, and higher yield.
The hydraulic system works with PLC intelligent control. It automatically completes feeding, tumbling, and discharging. The machine has a high level of automation.

Traditional meat curing takes a long time and has low efficiency. It often results in uneven color and low yield. Manual marination also fails to meet hygiene standards and is labor-intensive.
The chicken marinating machine solves these problems. Made of 304 stainless steel, it works under vacuum conditions. The machine tumbles and massages the meat quickly and evenly. This allows the marinade to penetrate faster and more uniformly. It improves flavor, tenderness, and product yield.
Continuous rotation ensures even color. The vacuum environment inhibits microbial growth and reduces oxidation. Combined with low-temperature control, it helps maintain product freshness and safety.

In addition to the chicken marinating machine, we also provide a full range of meat processing equipment, such as chicken cutting machines , chicken slicing machines , and other poultry processing solutions.
Welcome to contact us for more details and customized solutions.
